• Allergen Reduction Air Filter with Intersept Antimicrobial.  Premium Residential / Commercial

• The PerfectPleat Ultra will give you the performance our competitors promise but can't deliver. Compare to 3M Filtrete, Farr, Purolater, AirGuard, Koch, and Precisionair.

• Providing Greater Than 70% Efficiency on 3-10 Micron Particles!  Rated MERV 8.   Lasts 90 days.

• The Industry's Premier Extended Surface Pleated Panel Air Filter.

The Benefits of Higher Efficiency

The higher efficiency of the PerfectPleat Ultra means improved Indoor Air Quality (IAQ) in your facility. In addition, when you use it as a prefilter, you not only improve the air, you dramatically extend the service life of higher efficiency final filters. Use it as a primary filter in place of other less efficient pleated panel filters, and you will significantly reduce the accumulation of dirt in your air conditioning system. In any configuration, the PerfectPleat Ultra improves protection of the critical, and expensive, components in your air conditioning system.

The PerfectPleat Ultra maintains its high efficiency throughout the life of the filter and becomes much more efficient after the first dust loading.  It is not enhanced by an electrostatic charge that dissipates over time reducing filter efficiency, in some instances significantly.

Intersept^® Antimicrobial

AAF is the exclusive licensee of Intersept for commercial and residential air filters.  Environmentally Friendly & Safe.   EPA Registration No. 43670-1

All PerfectPleat Ultra filters incorporates Intersept® antimicrobial which is engineered specifically to improve IAQ. All filters are incubators of microorganisms. Intersept® acts as preservative to ensure the integrity of the media throughout the useful life of the filter. EPA registered and environmentally safe, Intersept® inhibits the growth of microorganisms (mildew, bacteria, fungi) documented to affect IAQ. This is important because the higher efficiency of the PerfectPleat Ultra means the filter removes significantly more microorganisms from the air.

2" PerfectPleat Ultra - Heavy Duty Frame

A perimeter frame of 28 pt. beverage board is securely glued to the media pack to create a solid cellside. The 28 pt. clay-coated board improves filter strength and helps resist damage.  Newly designed pleat stabilizers, bonded to the media to ensure pleat spacing uniformity, provide additional strength. Three sets of pleat stabilizers are positioned on the air-leaving side of the filter. On the air-entering side, three support straps add to the PerfectPleat's strength. The support straps and pleat stabilizers ensure integrity against turbulent airflow and provide excellent lateral stability for installation in side-access systems. The PerfectPleat is ideal for any application where pleated filters are currently in use and higher efficiency is required or desired. It offers superior durability and performance in the most demanding applications.

1" PerfectPleat Ultra - Strength and Durability

The 1" PerfectPleat Ultra has the same durability and performance as the 2" depth model.  Both are made using DuraFlex media encased in a unique beverage board frame.  PerfectPleat Ultra 1" features 3 support straps on the air entering side and a patented die cut pattern on the air leaving side.

DuraFlex™ Media
100% Synthetic Fibers • Better Air Flow • Patented Design

Perfectly shaped and spaced pleats.   Uniform size virgin fibers are assembled in closely controlled blends to create a media that is both self-supporting and remarkably consistent in performance. The self-supporting characteristics allow a pleating pattern that promotes excellent dust holding and resistance characteristics. The PerfectPleat meets or exceeds all current expectations for service life and required airflow and has a guaranteed Minimum Efficiency Reporting Value (MERV) of 8.

DuraFlex™ Media is Self-Supporting

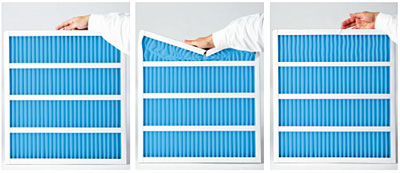

DuraFlex media's unique construction makes it self-supporting. When pleated, DuraFlex will hold its shape without the need for wire support characteristic of conventional pleated filters. That means no potential for the formation of rust and safer handling no nicks or cuts for the installer. With the superior resiliency of DuraFlex media and no need for wire support, the PerfectPleat can sustain significant abuse and maintain its shape and pleat spacing. The absence of the wire also makes the filter totally incinerable, which simplifies disposal.

Documented Performance

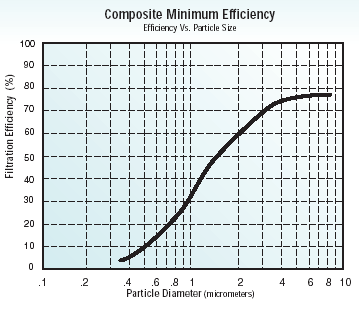

Under ASHRAE standard 52.2, PerfectPleat Ultra filters are classified with a Minimum Efficiency Reporting Value of MERV 8, providing greater than 70% efficiency on 3um particles. Insist upon documented performance. With the AAF PerfectPleat Ultra, MERV 8 classification is documented with test results from an independent laboratory.  The PerfectPleat Ultra will give you the performance our competitors promise but can't deliver.

10x10x1
10x20x1
12x12x1
12x20x1
12x24x1
14x20x1
14x25x1
15x20x1
16x16x1
16x20x1
16x25x1
18x20x1
18x25x1
18x24x1
20x20x1
20x25x1
24x24x1
25x25x1

10x20x2
12x20x2
12x24x2
14x25x2
15x20x2
15x25x2
16x16x2
16x20x2
16x24x2
16x25x2
18x25x2
18x24x2
20x20x2
20x24x2
20x25x2
24x24x2
25x25x2

Custom Made Information

Only the width and length can be custom made.  Filter depths cannot be custom made and are stated according to nominal industry standards.  Actual filter depths are as follows:

In general, all standard filter sizes are stated according to their nominal size and not their actual size.  This information can be found on the side of your filter.  For example, our standard PerfectPleat Ultra (nominal) 20x20x1 measures (actual) 19-1/2 x 19-1/2 x 3/4.  The nominal size represents the size of your filter rack.  The actual size represents the size your filter needs to be to fit inside your filter rack.  If your filter rack is an odd size, a standard sized filter may not fit properly.  In this case, you would need to order a custom made filter.

When ordering custom made filters please note that these filters will be made to your exact specifications ± 1/8 inch.   Therefore, please provide us with the exact width and length of the filter you are needing.  Please be sure to measure exactly for a snug fit to allow the filter to fit within the rack but without air seepage around the filter.
Remember: custom made filters are not returnable.

Minimum filter size: 4" x 4" and a Maximum filter size: 25" x 35".  We can build filters larger then 25" x 35" but they are considered a double size (please call us for pricing at 1-888-844-5820).  If a double sized filter is required, you may consider putting two filters together to achieve the size desired, i.e. 18" x 40" you would need two 18" x 20" air filters.

General Information

Underwriters’ Laboratories, Inc. Classification:
PerfectPleat Ultra filters are classified U.L. Class 2. Testing was performed according to U.L. Standard 900 and CAN4-S111.

Filter Dimensions: Actual filter face dimensions of Standard Size filters are listed by size and have a ±1/8" tolerance. Actual filter depths are as follows:

Packaging: PerfectPleat Ultra filters are packed in a heavy duty corrugated fiberboard box.

Product Graphics:  A label is applied to each filter showing the product name, size, U.L. classification and air flow direction.
