AmAir 300X
Premium Grade 3 month Air Filter

The Industry Pace Setter

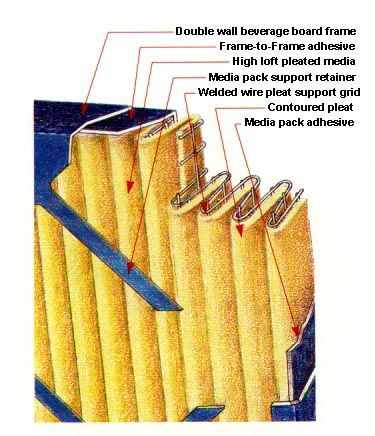

AmAir 300X filters are made with a totally unitized, double wall,
die-cut box, beverage board frame. The media pack is bonded
inside the frame at all points of contact. AmAir 300X filters are
built rugged for durability and reliability under tough
service conditions. 25-30% efficiency rating.

*Available in Custom-Made and 1", 2", and 4" thicknesses.



Product Information
Standard Nominal Sizes (inches) (W x H x D) Actual Size (Inches)
(W x H x D)
12x24x1
14x20x1
14x25x1
15x20x1
16x20x1
16x25x1
18x25x1
18x24x1
20x20x1
20x25x1
24x24x1
25x25x1

12x24x4
16x20x4
16x25x4
18x24x4
20x20x4
20x25x4
24x20x4
24x24x4
11-3/8 x 23-3/8 x 7/8
13-3/8 x 19-3/8 x 7/8
13-3/8 x 24-3/8 x 7/8
14-3/8 x 19-3/8 x 7/8
15-3/8 x 19-3/8 x 7/8
15-3/8 x 24-3/8 x 7/8
17-3/8 x 24-3/8 x 7/8
17-3/8 x 23-3/8 x 7/8
19-3/8 x 19-3/8 x 7/8
19-3/8 x 24-3/8 x 7/8
23-3/8 x 23-3/8 x 7/8
24-3/8 x 24-3/8 x 7/8

11-3/8 x 23-3/8 x 3-3/4
15-3/8 x 19-3/8 x 3-3/4
15-3/8 x 24-3/8 x 3-3/4
17-3/8 x 23-3/8 x 3-3/4
19-3/8 x 19-3/8 x 3-3/4
19-3/8 x 24-3/8 x 3-3/4
23-3/8 x 19-3/8 x 3-3/4
23-3/8 x 23-3/8 x 3-3/4

                        Key Benefits

























Performance Data
Pleats per Lineal Foot Rated Initial Resistance (In. W.G.) Recommended
Final Resistance
(In. W.G.)		 Rated Avg.
Efficiency %

Continuous Operating Temperature Limits
300 FPM 500 FPM 625 FPM
AmAir 300X 1" 14.0 .20 .45 - 1.0 25-30 200 F 93 F
AmAir 300X 2" 14.0 .13 ..30 .44 1.0 25-30 200 F 93 F
AmAir 300X 4" 11.0 .12 ..25 .36 1.0 25-30 200 F 93 F

Media Pack Support Retainers

1" Thick Filters:
• Both length and width less than 20” - No media retainers
• Either length or width 20” or more - Retainer on air leaving side only

2" and 4" Thick Filters
• Both length and width less than 14" - No retainer
• Either length or width 14" or greater and both less than 20" - Retainer on air leaving side only
• Either length or width 20" or greater - Retainer on both sides





Pricing available on request.
